Codealong - PubSub, events, mutations

6. Codealong - PubSub, events, mutations

10m

Overview

Let's update our subgraph setup so that we can subscribe to data.

Introducing PubSub

To both publish and subscribe to events, we'll use a package called graphql-subscriptions. This package gives us an implementation of the publish-subscribe messaging pattern called PubSub. We can create a new instance of this class to start emitting and listening to events, such as changes to our data.

Install and use `graphql-subscriptions`

In a terminal opened to the root of your messages subgraph, install the graphql-subscriptions package.

messages

npm install graphql-subscriptions@2.0.0

Now jump into the datasources/context.ts file. This is where we set the context on our server, which comes through to each resolver on its third positional argument, contextValue. We'll set it here so that all of our resolvers have access to the same PubSub instance.

At the top of the file, import PubSub from graphql-subscriptions. Below our imports, we'll instantiate PubSub in a constant called pubsub.

datasources/context.ts

import { PubSub } from "graphql-subscriptions";

const pubsub = new PubSub();

Note: Using PubSub like this automatically restricts the publishing-subscribing system to a single server instance. In production, you'll want this event system to be shared by all server instances (rather than merely in-memory). Check out this page in the official Apollo documentation for a list of PubSub libraries approved for production.

To make pubsub accessible to all of our resolvers, we need to include it in our already-defined createContext function. We'll add it as a property to the object we return from this function.

export const createContext = async ({
  req,
}: StandaloneServerContextFunctionArgument) => {
  const token = req.headers.authorization || "";
  const userId = token.split(" ")[1];
  return {
    userId,
    pubsub,
    dataSources: {
      db: new PrismaDbClient(),
      messagesAPI: new MessagesAPI(),
    },
  };
};

Because we're using TypeScript, we need to make a similar update to our types/DataSourceContext.ts file.

import { PrismaDbClient } from "../datasources/prisma/client";
import { MessagesAPI } from "../datasources/messages";
import { PubSub } from "graphql-subscriptions";

// This interface is used with graphql-codegen to generate types for resolvers context
export interface DataSourceContext {
  userId: string;
  pubsub: PubSub;
  dataSources: {
    db: PrismaDbClient;
    messagesAPI: MessagesAPI;
  };
}

Defining the `Mutation` resolver

Now that pubsub is available to our resolvers, we can jump to our Mutation resolvers and add the logic that triggers a new event.

Open up resolvers/Mutation.ts. We'll find the majority of the function is here - it's just waiting for us to uncomment it! This accepts the message we send and adds it to the database, but it's not yet triggering an event we can map to our subscription.

sendMessage: async (_, { message }, { dataSources, userId }) => {
  const { conversationId, text } = message;
  const {
    id,
    text: messageText,
    sentFrom,
    sentTo,
    sentTime,
    ...messageAttributes
  } = await dataSources.db.sendMessageToConversation({
    conversationId,
    text,
    userId,
  });

  // Return all of the message that was created
  return {
    id,
    text: messageText,
    sentFrom,
    sentTo,
    sentTime,
    ...messageAttributes,
  };
};

Note: If you see some type errors showing up, try re-running your subgraph with npm run dev. If you're using VSCode, you can also open up the command palette with Command + P, type > Typescript: Restart TS Server, and hit enter.

Now we can include pubsub in our destructuring of the resolver's third positional argment, contextValue.

sendMessage: async (_, { message }, { dataSources, pubsub, userId }) => {
  // ... mutation
};

We want to trigger our event once our message has been saved to the database successfully. We'll make some space just before returning the message from our function, and await calling the pubsub.publish method, passing in an event string of "NEW_MESSAGE_SENT".

// TODO: pass along conversation ID and only relevant attributes
// Issue new message event for subscription
await pubsub.publish("NEW_MESSAGE_SENT");

This sends a message of type "NEW_MESSAGE_SENT" for anything that's listening for the same type. Nothing's listening for it yet!

Plus, now we have an error: we're not passing a payload to our pubsub.publish call. For now, we'll update it to accept an empty object.

await pubsub.publish("NEW_MESSAGE_SENT", {});

Send some messages

At this point, we should be able to send some messages to a given conversation. (Make sure both your router and the messages subgraph are running!) Jump over to Studio, and let's run a mutation to send a message to conversation "xeno-ripley-chat". (For this make sure that your Authorization header references either xeno or ripley!)

Access the SendMessageToConversation operation we saved in our Operation Collection.

mutation SendMessageToConversation($message: NewMessageInput!) {
  sendMessage(message: $message) {
    id
    text
    sentTo {
      id
      name
    }
  }
}

And in the Variables panel:

{
  "message": {
    "text": "Are you interested in booking another stay aboard?",
    "conversationId": "xeno-ripley-chat"
  }
}

And make sure that your Headers also contain the following Authorization header. (As it's a chat between "xeno" and "ripley", you can alternate which ID you reference below.)

Authorization: Bearer xeno

https://studio.apollographql.com

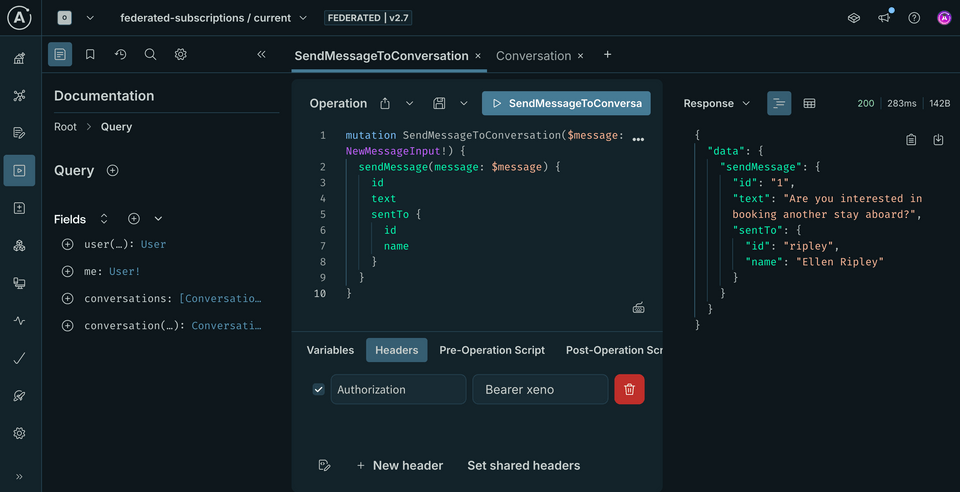

A screenshot of Explorer showing the response after sending a message to a particular conversation

Now you can try querying the conversations you're a part of. The following query (GetConversations in your Operation Collection) will show you created conversations along with their messages. Everything working? Let's move on!

query GetConversations {
  conversations {
    messages {
      text
      sentFrom {
        id
      }
    }
  }
}

Subscription configuration

We're going to take care of our subscription resolver next, but we need to make one tweak in Explorer so it understands how to handle our incoming subscription operations.

Click the gear icon at the top of the Documentation panel to open up settings. Then select the Edit button next to the Connection Settings header.

http://studio.apollographql.com

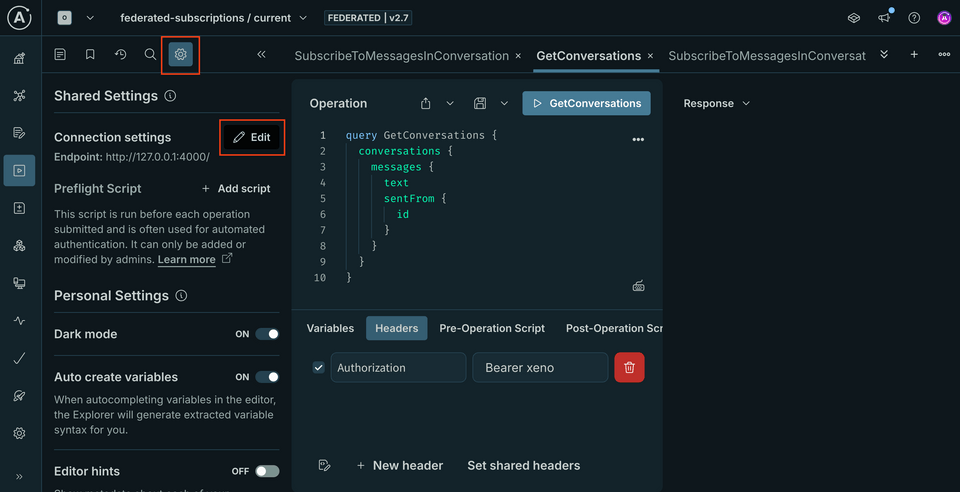

A screenshot Studio showing how to access the Settings panel

This opens up a modal where we can modify where our operations should be sent. In the Subscriptions text box, we'll add the IP address and port the router's listening on: http://127.0.0.1:4000. We'll also modify the dropdown box for Implementation and select the http-multipart option.

http://studio.apollographql.com

A screenshot of the modal window in Studio, highlighting where we specify the subscription IP address and port and specify the implementation

The `Subscription` resolver
