Overview

In this module, we will cover how we can set limits in our incoming queries to protect our backend resources.

Operation limits

To ensure that we have the proper protection against malicious (or ill-formed) queries, we need to have some GraphQL-specific safeguards in place. For this, we will use a feature of Apollo GraphOS called operation limits.

Operation limits prevents running queries that put excess strain on our service. We can place height, depth, and alias limits on our graph via our router configuration.

We can configure the following properties:

• max_height: Limits the number of unique fields included in an operation, including fields of fragments. If a particular field is included multiple times via aliases, it's counted only once.
• max_depth: Limits the deepest nesting of selection sets in an operation, including fields in fragments.
• max_aliases: Limits the total number of aliased fields in an operation, including fields of fragments.
• max_root_fields: Limits the number of root fields in an operation, including root fields in fragments. If a particular root field is included multiple times via aliases, each usage is counted.

The current state

Let's run a complex query against our graph.

1. Open up Studio and navigate to the Explorer.

2. We want to run a query that has a height greater than 10. Here is a good example query to run:

   A query with a lot of height

   query ALotOfHeight {
     getFeaturedProducts {
       description
       featured
       id
       images
       name
       price
       shortDescription
       sku
       variants {
         colorway
         id
         inStock
         price
         size
       }
     }
   }

   Copy

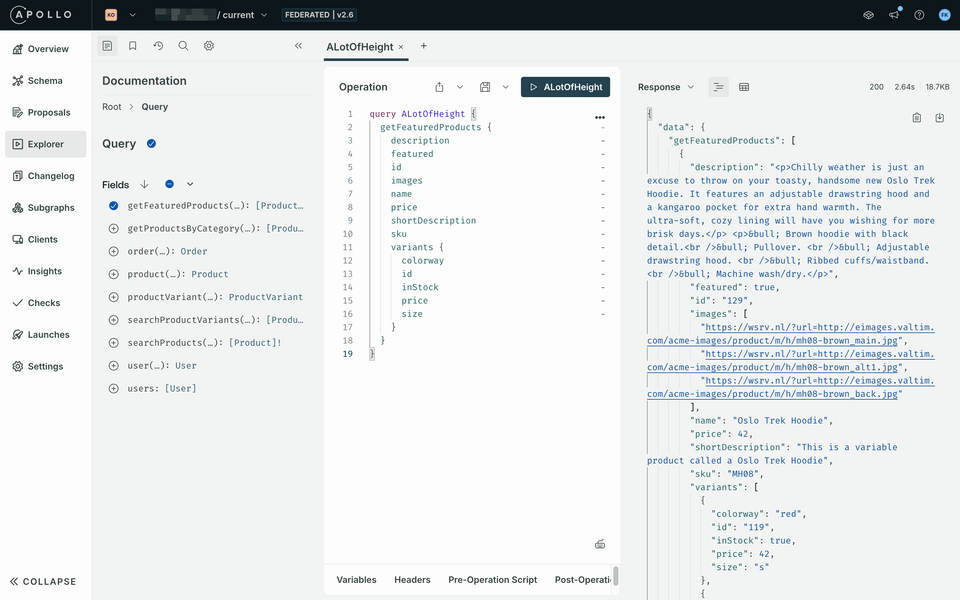

3. We should get data back!

   https://studio.apollographql.com



Configuring operation limits

1. In the GitHub repo, navigate to the router folder and open up the router.yaml file

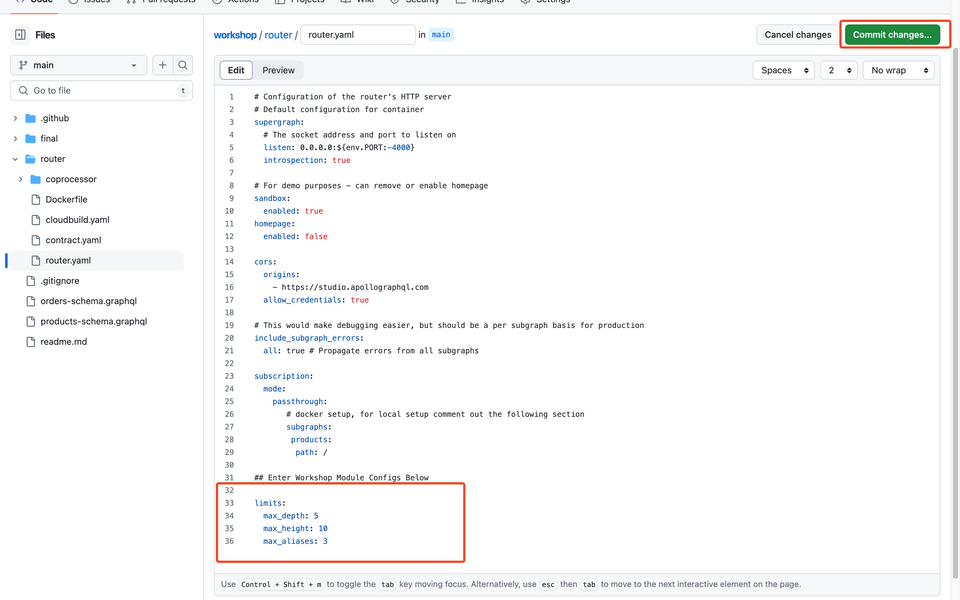

2. Add the following lines into the router.yaml file to enable operation limits:

   limits:
     max_depth: 5
     max_height: 10
     max_aliases: 3

   Copy

   This will instruct the router to block any requests that exceed these limits.

3. Commit the changes

   https://github.com



Check your work

1. Navigate back to Studio and open up the Explorer

2. Run the same query as before:

   A query with a lot of height

   query ALotOfHeight {
     getFeaturedProducts {
       description
       featured
       id
       images
       name
       price
       shortDescription
       sku
       variants {
         colorway
         id
         inStock
         price
         size
       }
     }
   }

   Copy

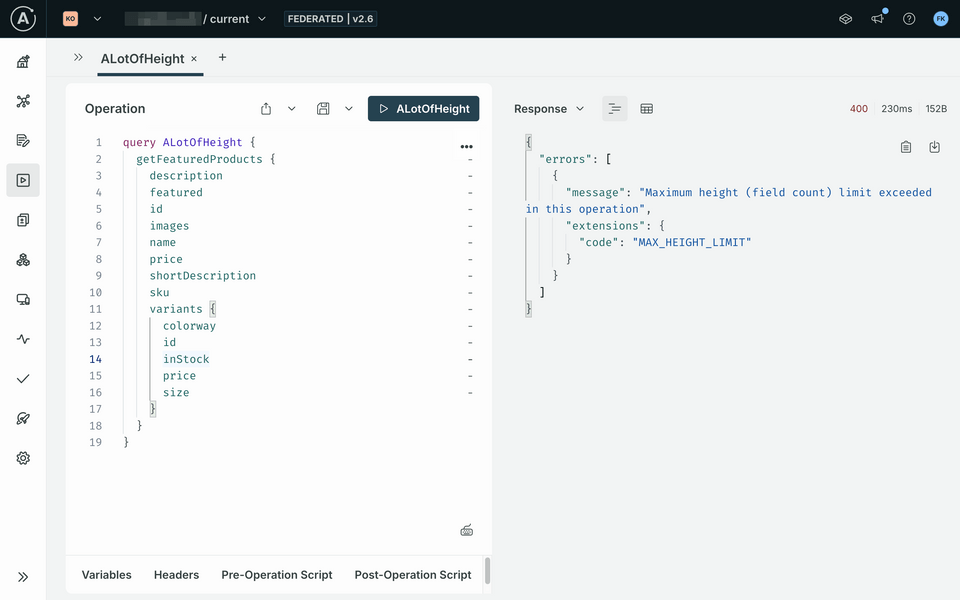

3. With our operation limits in place, we should see the query fail with the error code MAX_HEIGHT_LIMIT and the message Maximum height (field count) limit exceeded in this operation

   https://studio.apollographql.com



Feel free to play with other queries that exceed our new operation limits. Our graph is now more secure, and all it took was a few lines of configuration!

Up next

In the next module, we'll lock down what type of queries can be executed against our graph so that only pre-approved queries can be run.
