Overview

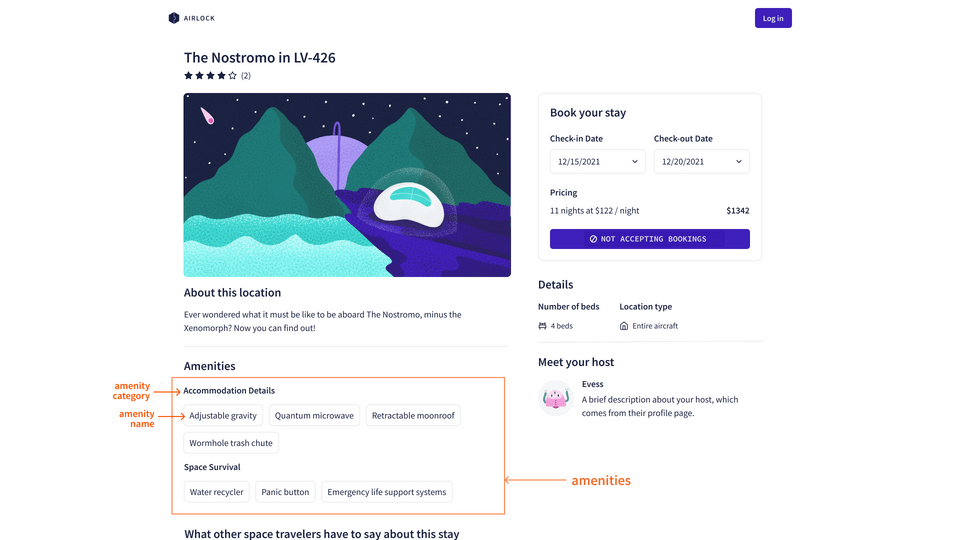

There's a big chunk of data missing: a listing's amenities.

In this lesson, we will:

• Learn how to use connectors on an object type's fields
• Learn how to access an object type's fields to use inside a connector using $this

A listing's amenities

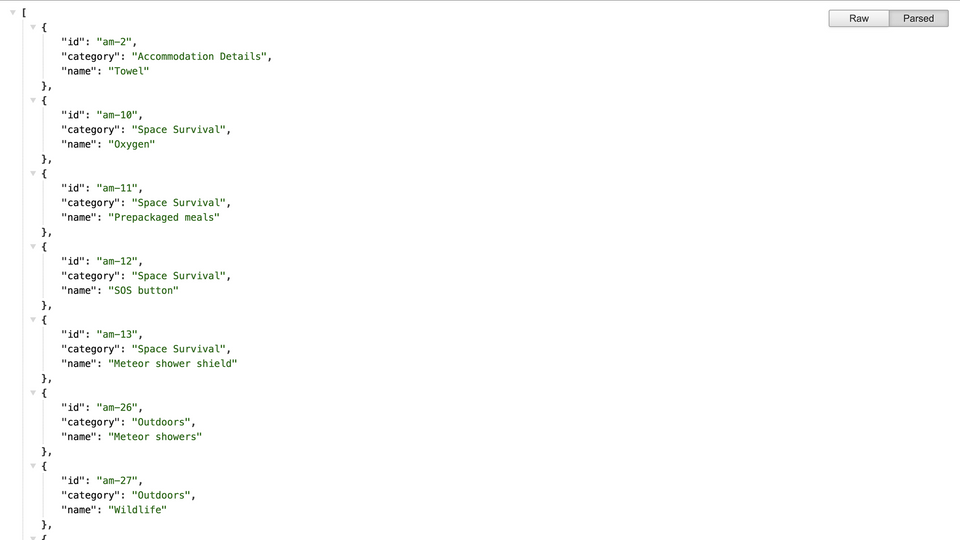

For the listing's amenities, we can use the GET /listings/:id/amenities endpoint: https://airlock-listings.demo-api.apollo.dev/listings/listing-1/amenities.

This endpoint returns an array of amenity objects, each with its own id, category and name.

We're introducing a new endpoint here, to supplement the data we need for the same page. Normally, clients would have to manage that orchestration themselves, making one call for the listing details, another for amenities, and stitching that all together.

With connectors, the client can make one request, asking for everything they need, and the router takes care of the orchestration for them!

Adding to the schema

Let's get to it!

1. Back in our schema, we'll add a new object type called Amenity. We'll give it those three fields, using the same names as in the response object, with descriptions for each.

   listings.graphql

   type Amenity {
     id: ID!
     "The amenity category the amenity belongs to"
     category: String!
     "The amenity's name"
     name: String!
   }

   Copy

2. A listing has amenities, so we'll define that relationship by adding a new field in the Listing type called amenities, which will return a list of Amenity types.

   listings.graphql

   type Listing {
     # ...other Listing fields
     "The amenities available for this listing"
     amenities: [Amenity!]!
   }

   Copy

3. When we save our changes, rover dev will restart automatically. And of course, we get errors.

   Rover errors

   error[E029]: Encountered 4 build errors while trying to build a supergraph.

   Caused by:
       CONNECTORS_UNRESOLVED_FIELD: [listings] No connector resolves field `Listing.amenities`.
          It must have a `@connect` directive or appear in `@connect(selection:)`.
       CONNECTORS_UNRESOLVED_FIELD: [listings] No connector resolves field `Amenity.id`.
          It must have a `@connect` directive or appear in `@connect(selection:)`.
       CONNECTORS_UNRESOLVED_FIELD: [listings] No connector resolves field `Amenity.category`.
          It must have a `@connect` directive or appear in `@connect(selection:)`.
       CONNECTORS_UNRESOLVED_FIELD: [listings] No connector resolves field `Amenity.name`.
          It must have a `@connect` directive or appear in `@connect(selection:)`.

But don't worry, we've got this by now–it's connector time!

Adding a connector on an object type's fields

This time, we're not adding a connector to a root type like Query. Instead, we'll add it to a field on an object type. In this case, the Listing.amenities field!

1. Let's add the @connect directive and hit Enter to auto-complete our parameters.

   listings.graphql

   type Listing {
     # ...other Listing fields
     amenities: [Amenity!]!
       @connect(
         source: ""
         http: { GET: "" }
         selection: """

         """
       )
   }

   Copy

2. source stays the same as always.

   listings.graphql

   source: "listings"

   Copy

3. Next up, the endpoint: listings/:id/amenities.

   listings.graphql

   http: { GET: "/listings/:id???/amenities" }

   Copy

4. But id needs to be a dynamic value. Specifically, it needs to be the value of this particular Listing's id field.

   type Listing {
     id: ID! # ⬅️ Here's the value we actually need!
     "The listing's title"
     title: String!
     "The number of beds available"
     numOfBeds: Int
     "The cost per night"
     costPerNight: Float
     "Indicates whether listing is closed for bookings (on hiatus)"
     closedForBooking: Boolean
     "The amenities available for this listing"
     amenities: [Amenity!]!
       @connect(
         source: "listings"
         http: { GET: "/listings/:id???/amenities" } # ⬅️ Here's where we need it to end up!
       )
   }

Here, amenities and id are considered sibling fields, which means they share the same parent object type: Listing. To access that parent object type, we use a variable called $this.

Accessing an object type's fields in connectors

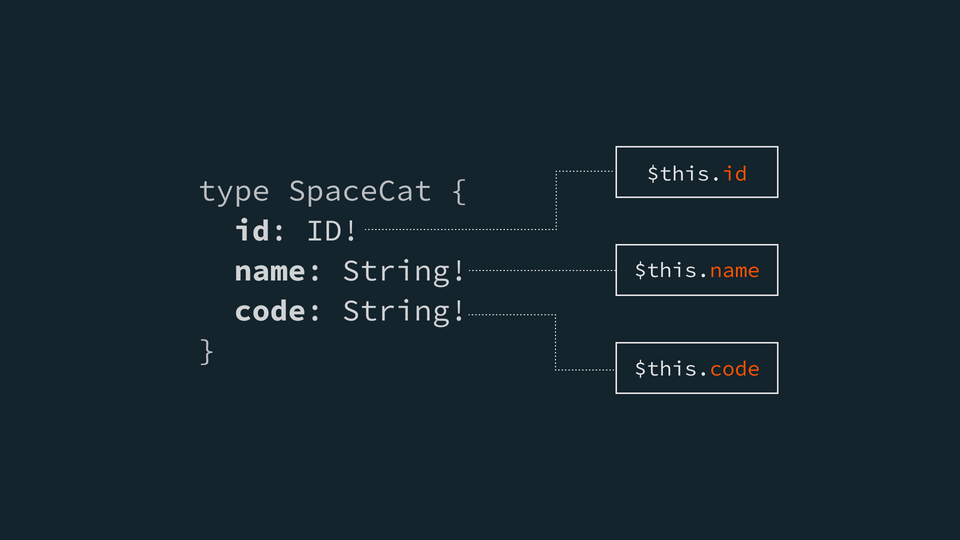

In this schema, for example:

We can access all of the object's fields using $this.id, $this.name and $this.code.

And just like before, we can wrap the field we want in curly braces ({ }) to interpolate it into the path in our connector.

Let's give it a spin!

Using $this

1. Back where we left off with our amenities connector.

   listings.graphql

   amenities: [Amenity!]!
     @connect(
       source: "listings"
       http: { GET: "/listings/:id???/amenities" } # ⬅️ Here's where we need to replace :id???
       selection: """

       """
     )

2. We can use $this.id, to refer to the Listing type's id field. Remember, keep the dollar sign inside the curly braces when we're interpolating it into the path.

   listings.graphql

   type Listing {
     id: ID!
     # ... other Listing fields
     amenities: [Amenity!]!
       @connect(
         source: "listings"
         http: { GET: "/listings/{$this.id}/amenities" }
         selection: """

         """
       )
   }

   Copy

3. Last thing—we have to fill in our selection mapping. We decided to name our fields the same as the response properties, so the mapping here should be one-to-one.

   listings.graphql

   selection: """
   id
   name
   category
   """

   Copy

Checking our work

Let's save our changes and jump back to Sandbox.

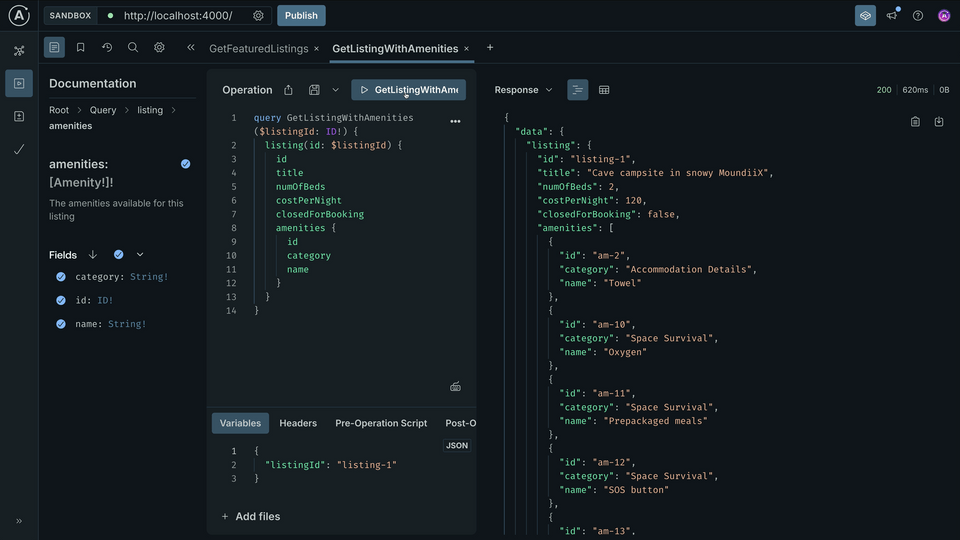

Let's add on to this operation to retrieve a specific listing, with the new amenities field. For each amenity, we want all the fields available. We'll rename this operation: GetListingWithAmenities.

Don't forget we still need a listingId in the Variables section.

Go ahead and run it... nice! We've got the same listing from before, but this time, with its amenities!

Orchestration in action

This is one request from the client, but with data coming from more than one endpoint! And it's all handled on the router side, so our clients don't need to worry about managing multiple API calls.

We've started small, using only 2 endpoints, but imagine when we start to add more features to the listing details page, like host and guest information, ratings, reviews, bookings, activities.

More domains, more connectors to build, and all that API orchestration will be handled smoothly by the router.

Practice

Answer the next question using the schema below:

Key takeaways

• A single client request can retrieve data from multiple endpoints with the use of Apollo Connectors.
• The @connect directive can be applied to fields on root types or object types.
• To access an object type's fields from within its connector, we can use $this.

Up next

In the next lesson, we'll continue to expand our schema and tap into the power of entities.
